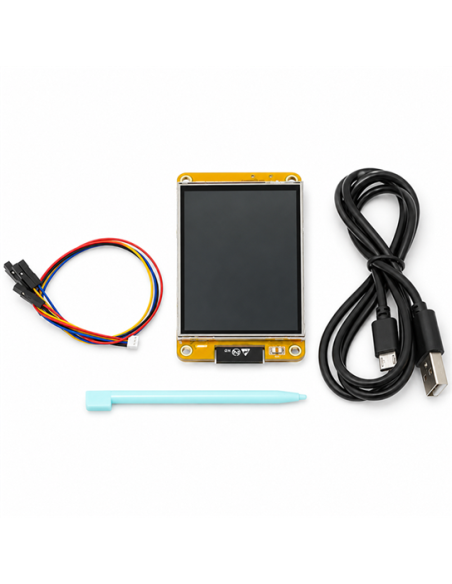

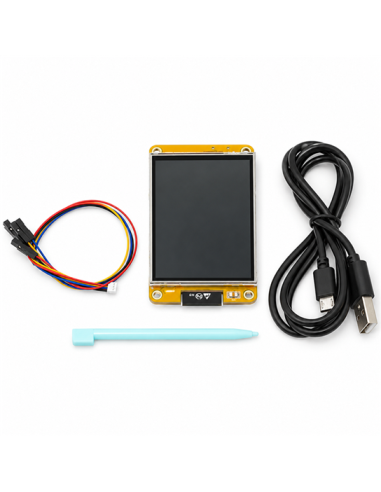

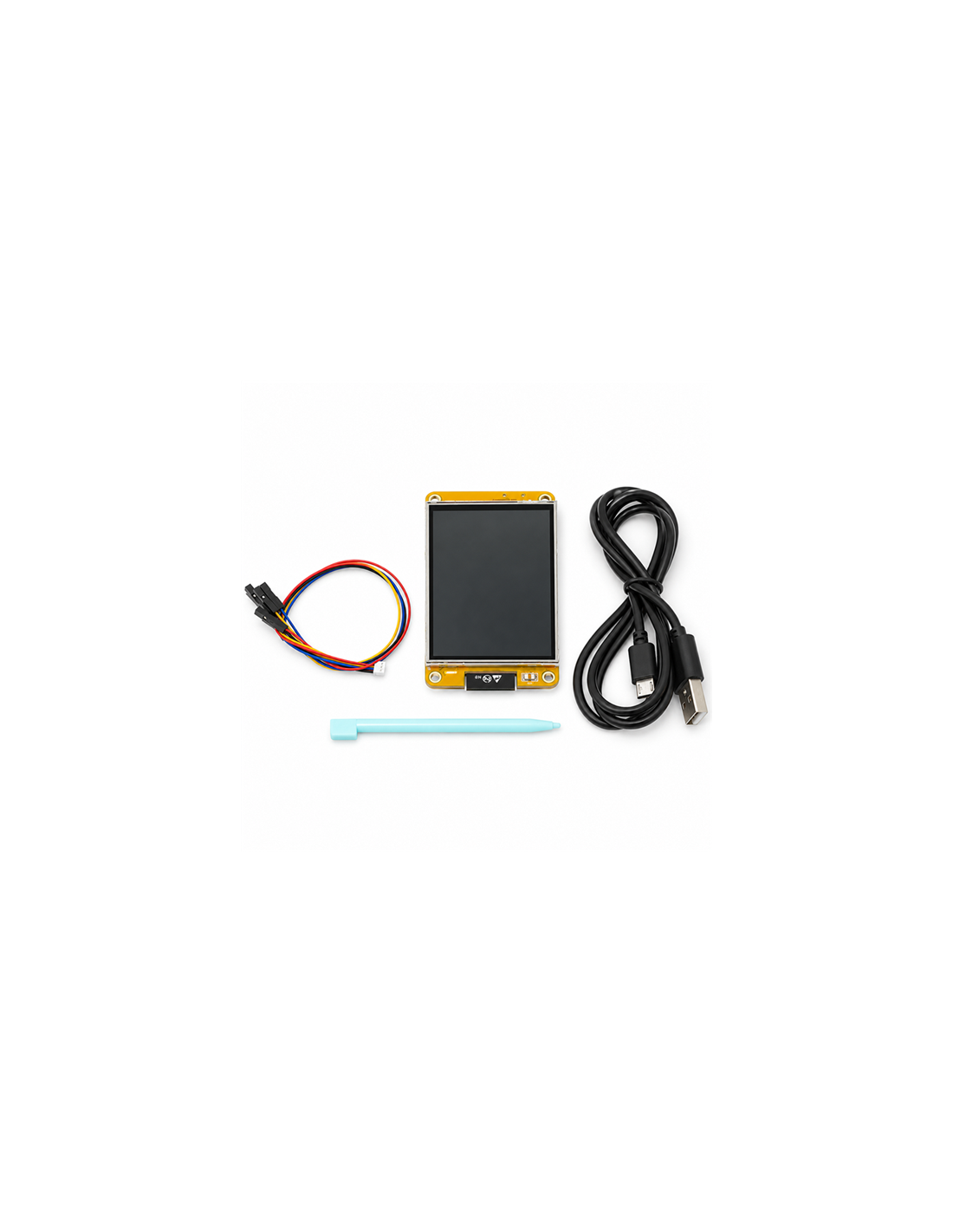

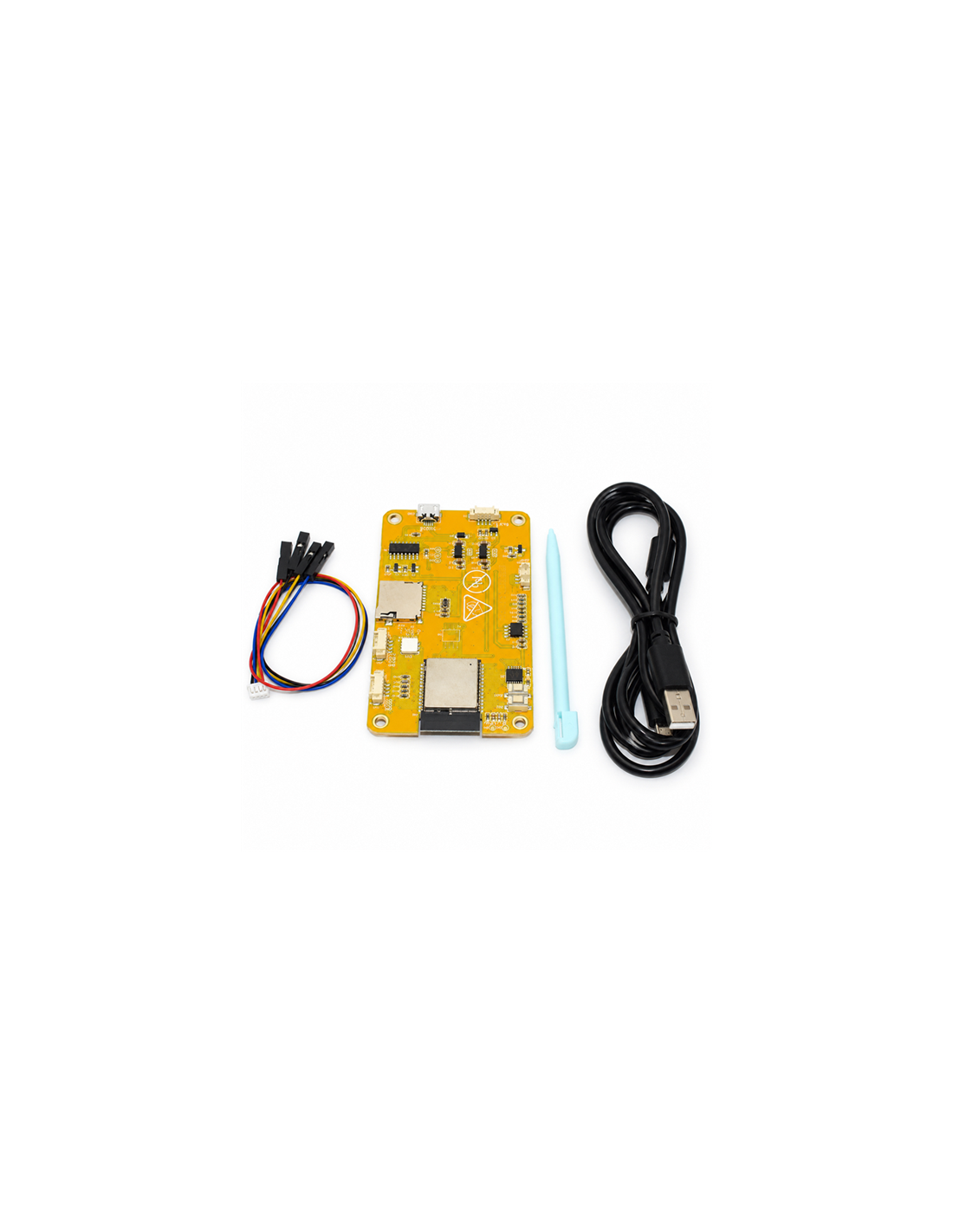

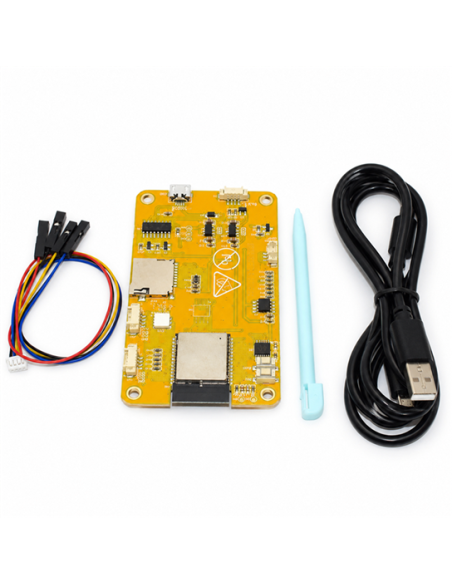

Build powerful IoT projects, smart displays, control panels and graphical user interfaces with the ESP32 LVGL WiFi & Bluetooth 2.8-Inch LCD Development Board. This compact all-in-one development board combines an ESP32 dual-core microcontroller, 2.8-inch 240 × 320 colour TFT LCD, resistive touchscreen, WiFi and Bluetooth connectivity into one versatile platform.
Designed for use with the Arduino IDE and LVGL (Light and Versatile Graphics Library), this ESP32 smart display makes it easy to develop interactive touchscreen interfaces for IoT devices, home automation systems, sensor displays, equipment controllers, monitoring systems and custom embedded electronics projects.
The integrated 2.8-inch TFT LCD provides a clear 240 × 320 pixel resolution for displaying graphics, menus, sensor readings, buttons, gauges and other interface elements.
A built-in resistive touchscreen allows users to interact directly with their projects, making the board an excellent solution for creating compact Human Machine Interfaces (HMI) and touchscreen control panels.
At the heart of the development board is the popular ESP32 microcontroller, featuring a low-power dual-core 32-bit processor with an operating frequency of up to 240MHz and computing performance of up to 600 DMIPS.
With 520KB internal SRAM and 32Mbit SPI Flash, the ESP32 provides plenty of processing capability for graphical interfaces, wireless communication, sensors and embedded applications.
The board supports LVGL, a popular open-source graphics library designed specifically for embedded displays.
Using LVGL together with the Arduino development environment allows developers to create professional-looking interfaces including:
Buttons and touch controls
Menus and navigation screens
Gauges and meters
Charts and graphs
Sensor dashboards
Status indicators
Settings screens
IoT control panels
This makes the ESP32 2.8-inch display particularly useful for projects requiring a customised graphical user interface.
Integrated wireless connectivity makes it easy to connect your project to networks, smartphones and other compatible devices.
The ESP32 supports:
WiFi: 802.11 b/g/n/e/i
Bluetooth: Bluetooth 4.2 BR/EDR
BLE: Bluetooth Low Energy
Onboard WiFi and Bluetooth antenna
WiFi connectivity allows the display to retrieve or send information over a network, making it suitable for applications such as IoT dashboards, smart home controllers, wireless monitoring systems and network-connected displays.
An integrated IO expansion port provides access to GPIO pins for connecting external electronics such as sensors, relays, switches, LEDs and other modules.
Supported interfaces include:
UART up to 2Mbps
I2C
PWM
GPIO expansion
The development board supports a TF / MicroSD card up to 16GB, allowing additional storage to be added for graphics, interface assets, configuration files, data logging and other project resources.
ESP32 dual-core 32-bit microcontroller
CPU frequency up to 240MHz
Computing performance up to 600 DMIPS
2.8-inch colour TFT LCD
240 × 320 resolution
Integrated resistive touchscreen
Supports LVGL graphical interfaces
Programmable using the Arduino IDE
Built-in 520KB SRAM
32Mbit SPI Flash
Integrated WiFi connectivity
Bluetooth 4.2 BR/EDR
Bluetooth Low Energy (BLE)
Onboard WiFi and Bluetooth antenna
Supports UART, I2C and PWM interfaces
GPIO expansion interface
Supports TF / MicroSD cards up to 16GB
Compact all-in-one display and ESP32 development platform
Microcontroller: ESP32
Processor: Dual-Core 32-bit CPU
Maximum CPU Frequency: 240MHz
Computing Performance: Up to 600 DMIPS
Display Size: 2.8 Inch
Display Type: Colour TFT LCD
Resolution: 240 × 320 Pixels
Touch Type: Resistive Touchscreen
Internal SRAM: 520KB
SPI Flash: 32Mbit
WiFi: 802.11 b/g/n/e/i
Bluetooth: Bluetooth 4.2 BR/EDR + BLE
Interfaces: UART, I2C, PWM and GPIO
UART Speed: Up to 2Mbps
Memory Card Support: TF / MicroSD up to 16GB
Operating Voltage: 4.75–5.25V
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +125°C
Storage Humidity: Up to 90% RH
Flash Off: Approximately 180mA @ 5V
Flash On / TFT Maximum Brightness: Approximately 310mA @ 5V
Deep Sleep: As low as approximately 6mA @ 5V
The ESP32 2.8-Inch LVGL Touch Display Development Board is ideal for a wide variety of electronics and IoT projects, including:
IoT dashboards
Smart home control panels
Home automation systems
Touchscreen controllers
Sensor monitoring displays
Temperature and humidity controllers
WiFi-connected displays
Bluetooth control interfaces
DIY HMI displays
Industrial monitoring prototypes
Data logging systems
Robotics control panels
Smart switches and controllers
Embedded GUI development
Arduino and ESP32 development projects
Combining the ESP32, touchscreen LCD, WiFi, Bluetooth and LVGL support into a single development board significantly simplifies the process of building interactive embedded projects.
Instead of connecting a separate ESP32 board, LCD module and touchscreen controller, this integrated solution provides the essential hardware in one compact package.
Whether you're developing a WiFi IoT dashboard, smart home controller, sensor monitoring system or custom touchscreen interface, the ESP32 LVGL 2.8-inch display provides a powerful and flexible platform for bringing your project to life.
