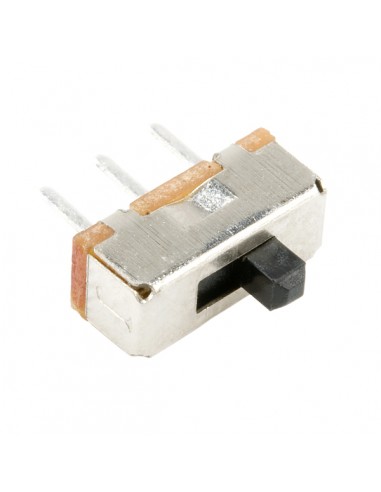

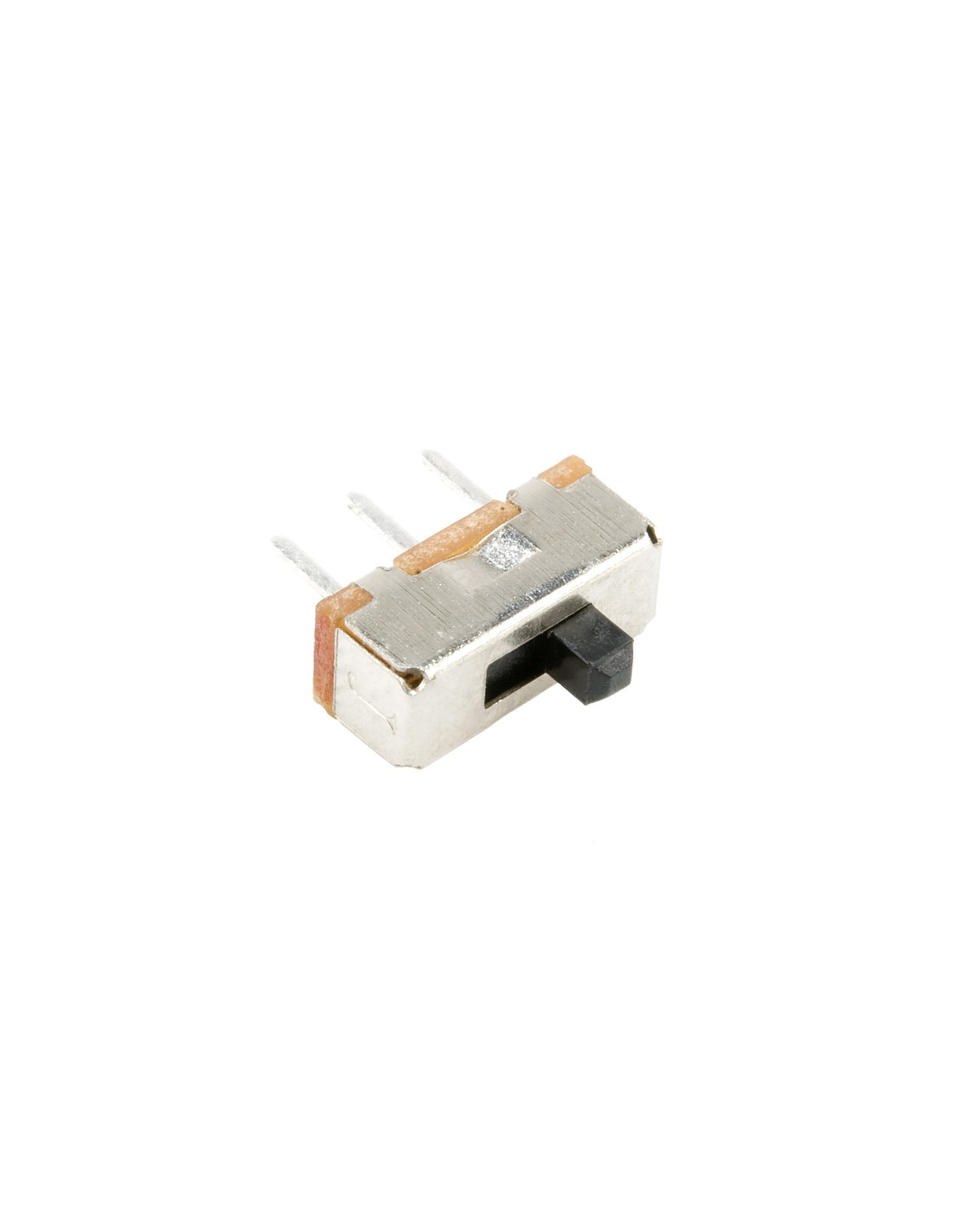

Slide Switch for Breadboard

Slide Switch for Breadboard

COM-00743
In Stock
R5.00
Tax included
48 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Slide switches are used to control current flow in a circuit, and typically use a mechanical slider to switch a current on and off, by sliding between an open and closed state. Well suited for controlling current flow in smaller circuits, it is very common to see slide switches used as a primary power switch in small, battery operated electrical devices.Though they behave very similarly to push button switches, slide switches have a more obvious tactile shape, which allows the user to more confidentially differentiate between on and off states.

Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment

Contact Resistance: 30mΩ
Max; Insulation Resistance: 100mΩ
Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Working Power: 0. 5A 50V DC
Terminal Length: 3mm/ 0. 12"
Pin Pitch: 2. 54mm / 1"
Main Body Size(not include Pins & Knob): 8 x 4 x 3. 8mm (L*W*H)
Switch Total Size: 8 x 4 x 10mm (L*W*H);
Knob Size: 1. 5 x 1. 5 x 3mm (L*W*H);
