BMS 6S 40A 18650 Lithium Battery...

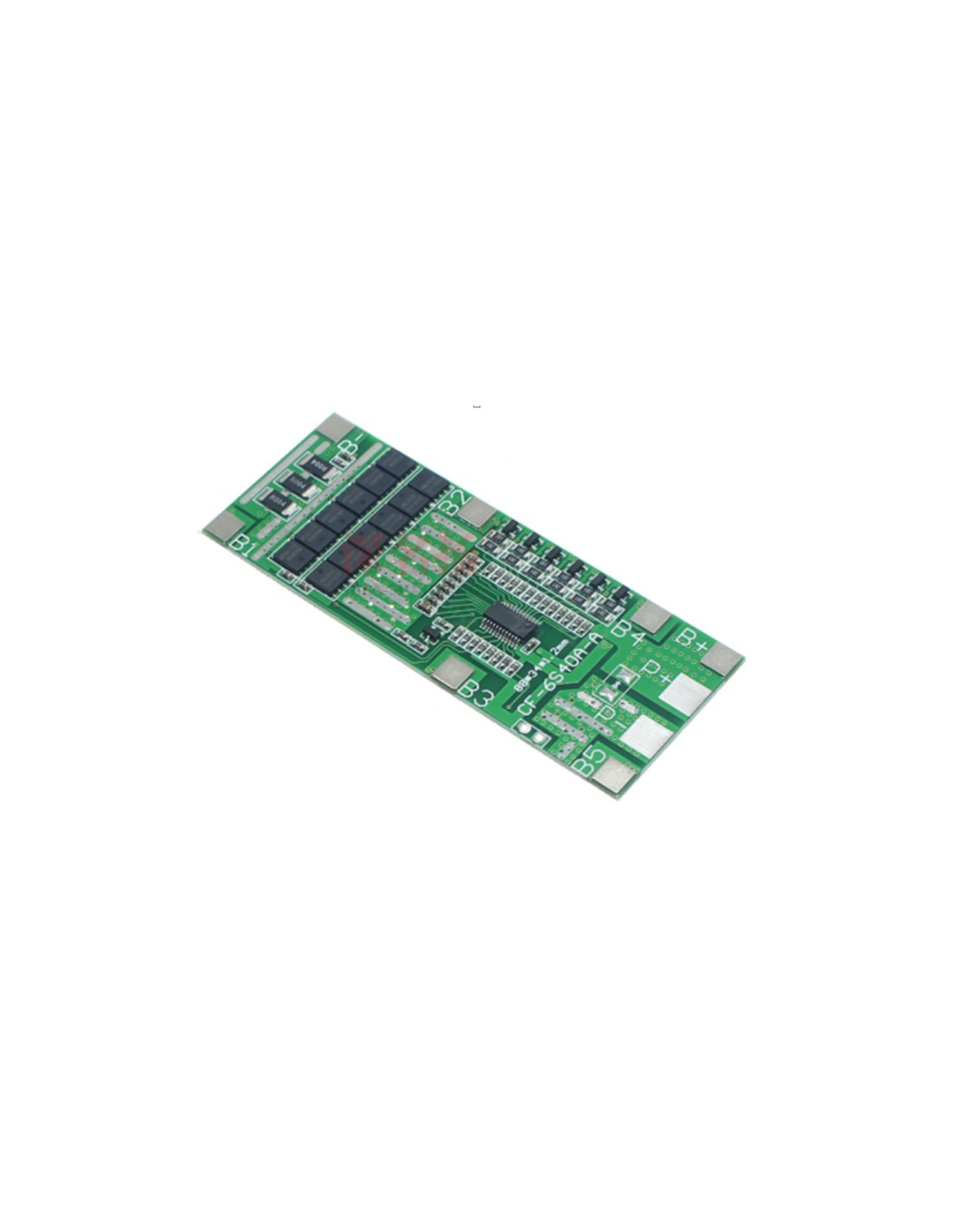

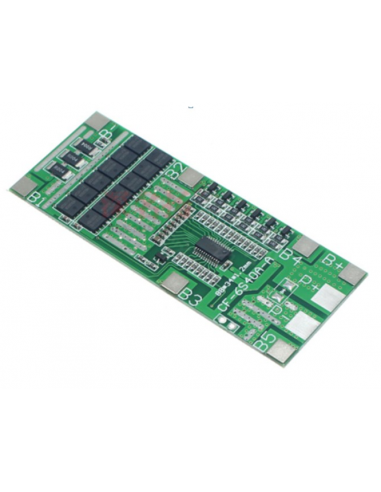

BMS 6S 40A 18650 Lithium Battery Protection Board

Last items in stock
Tax included
1 Item

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.


With Balance circuit
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection
Split-mouth 40A discharge current
IT IS 6 string 24V 6-Cell lithium battery power protection board

Material: PCB
Maximum discharge current: 40A
Instantaneous discharge current: 70A
Charging voltage: 25.5V
Maximum charging current: 40A
Overcharge detection voltage: 4.25±0.025V
Overcharge delay: 1.0±0.5S
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.125±0.025V
Battery balance release voltage: 4.125±0.05V
Battery balance current: 41±5mA
Overdischarge detection voltage: 2.7 ± 0.1V
Overdischarge detection delay: 1.0±0.5S
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 100mV
Overcurrent detection delay: 1±0.3S
Overcurrent current: 75±5A
Overcurrent release condition: disconnect load
Short circuit condition: external load short circuit
Short circuit detection delay: 250uS
Short circuit release condition: disconnect load
Main circuit conduction internal resistance: ≤20mΩ
Working current: ≤40uA
Temperature range: -30/+80°C
