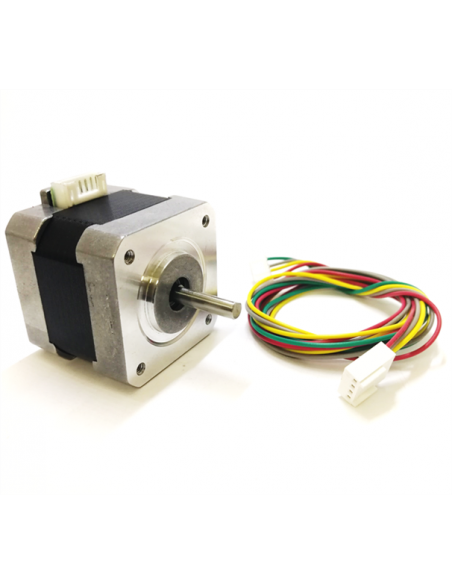

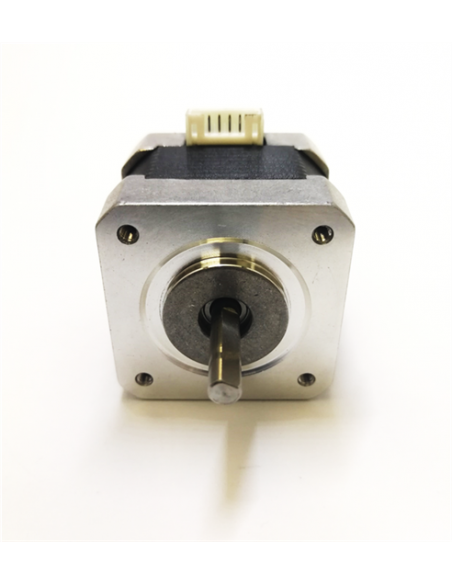

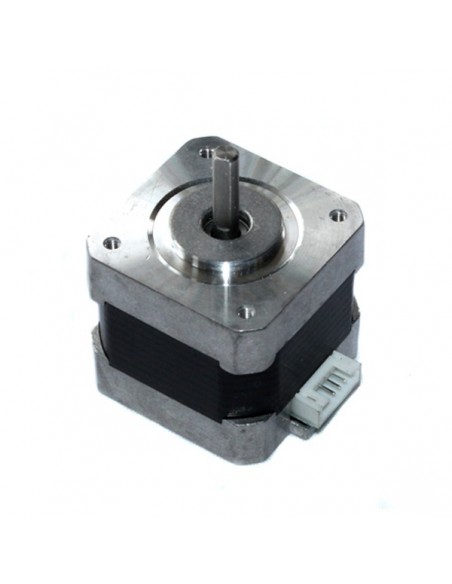

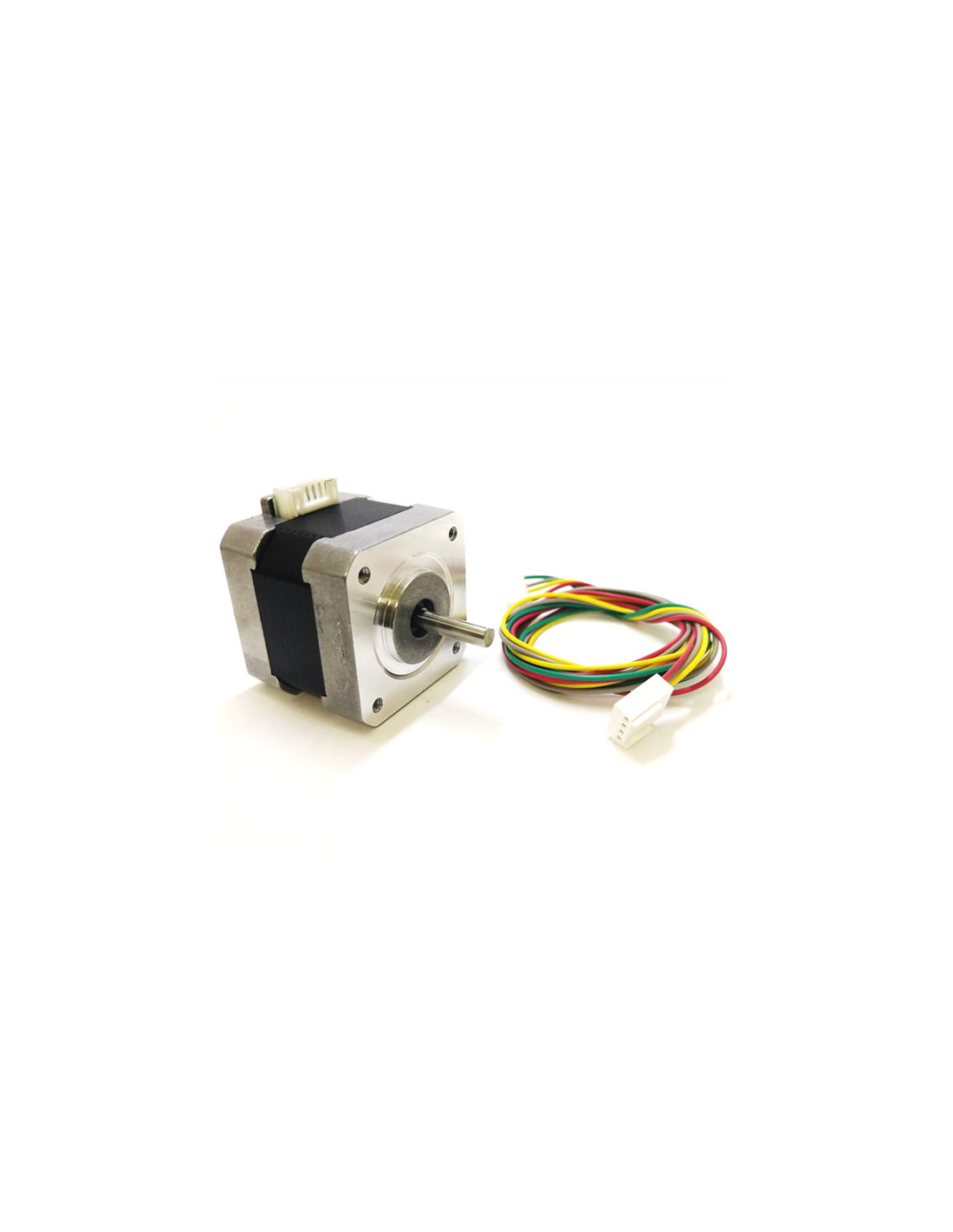

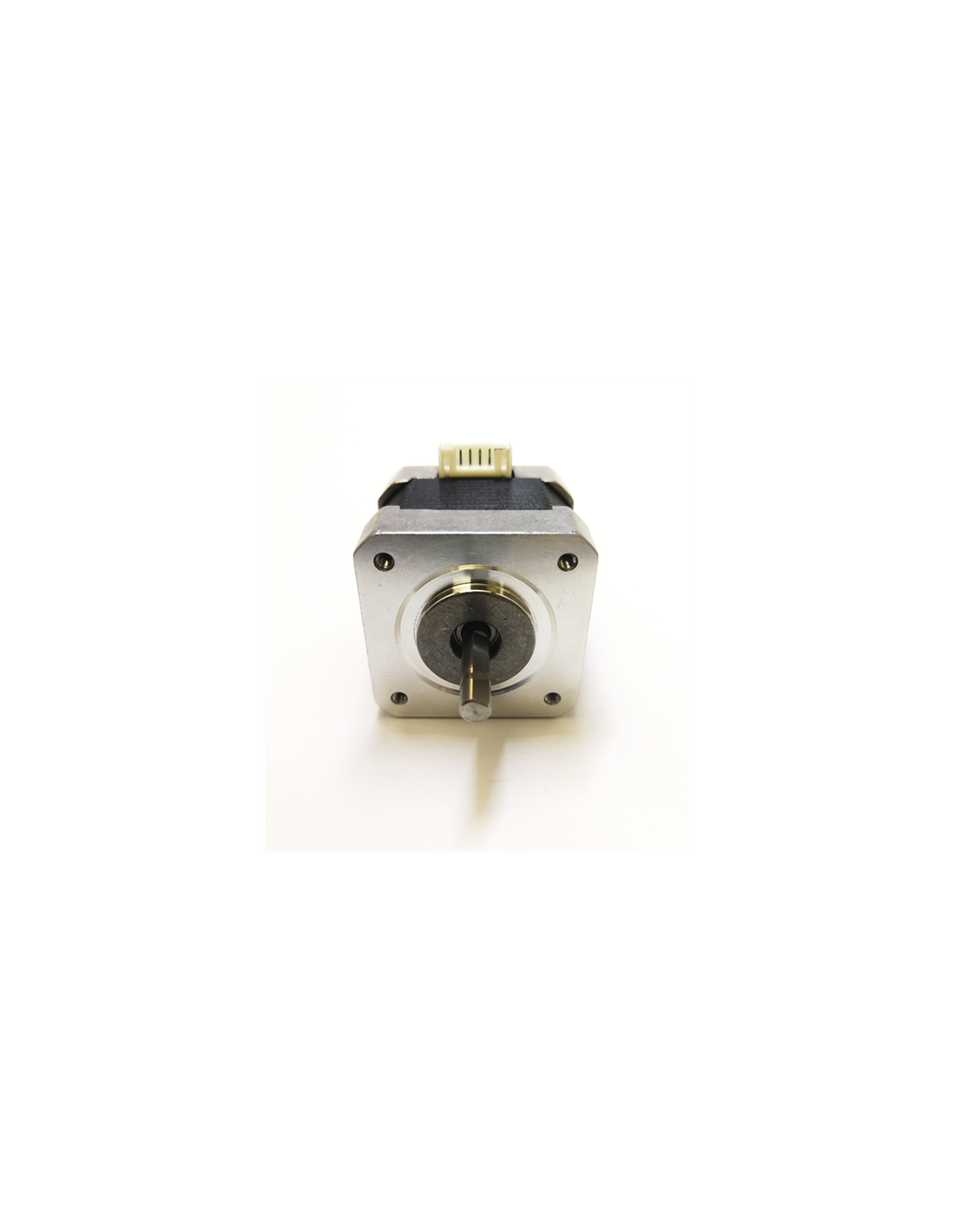

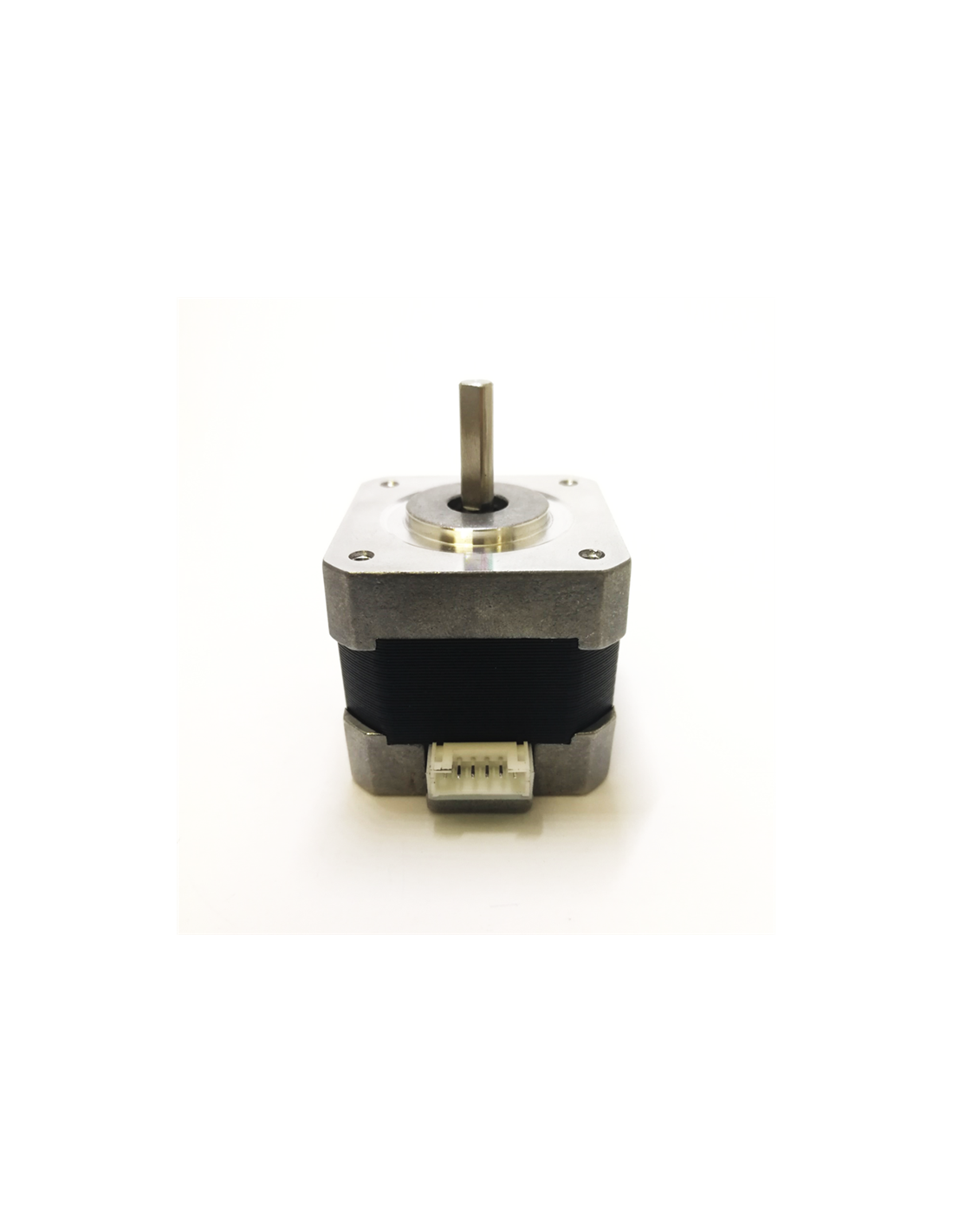

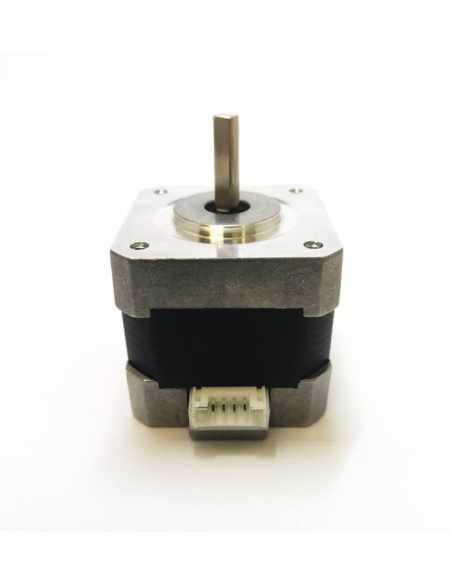

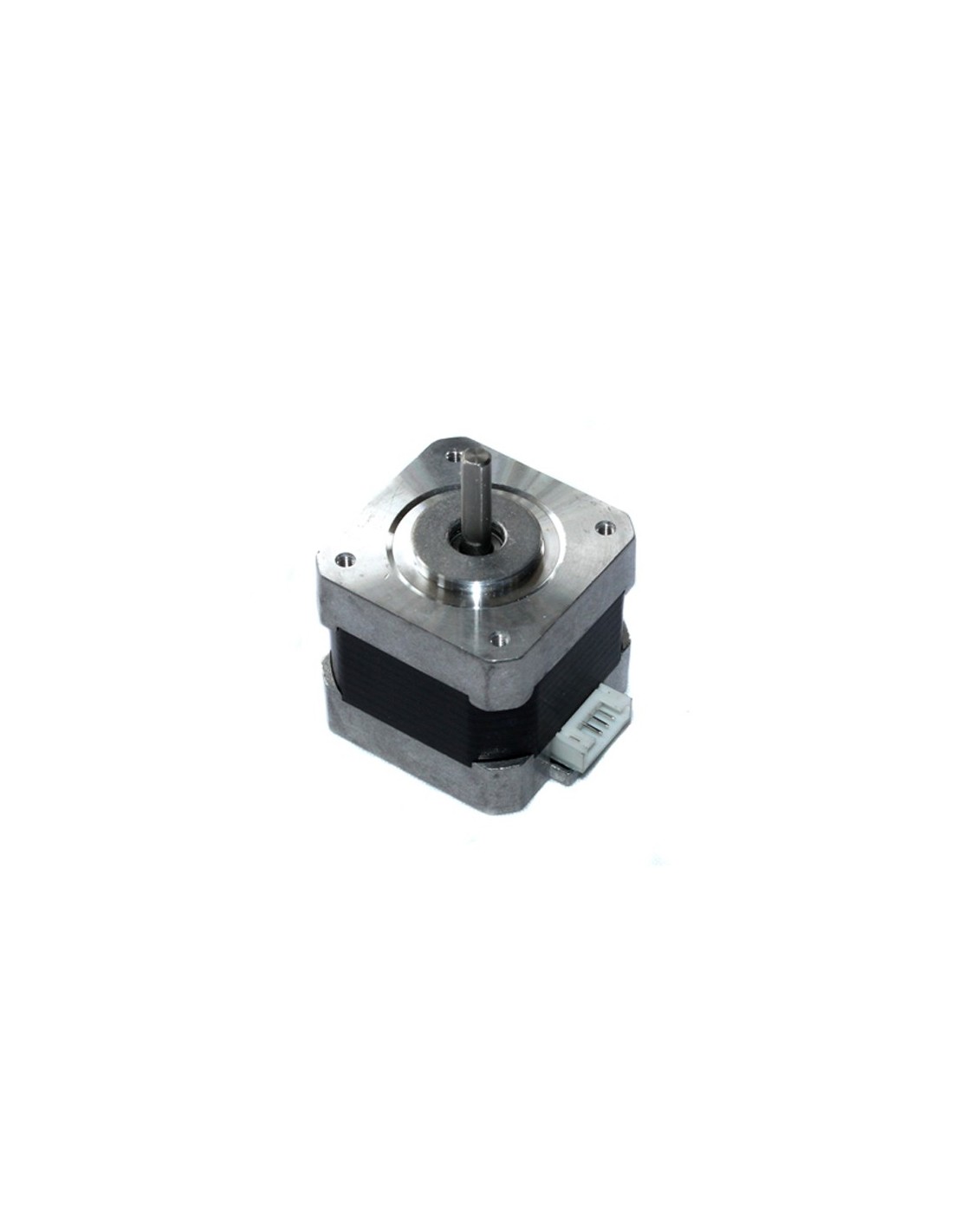

Nema17 Stepper1.8 deg Motor 40mm (4kg torque) .4 Nm

Your regular (4kg torque) NEMA 17 Stepper Motor (1.8 deg/step) for the Reprap and other 3D Printers or CNC machines.

3DP-00024
In Stock
R243.59 R270.65 -R27.06
Tax included
Time left

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Your regular NEMA 17 Stepper Motor for the Reprap and other 3D Printers or CNC machines.

Specifications:

  • 200 steps per revolution (1.8 deg/step)
  • 2 Phase bipolar 4 wires
  • Rated Voltage 2V DC
  • Rated Current 1.2A
  • Phase Resistance: 1.7 Ohm ± 10% (20º C)
  • Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
  • Holding torque: 0.4 N.m Min. (4kg/cm torque)

Dimensions:

  • Shaft diameter: 5mm / 0.188" (3/16")
  • Shaft length: 22mm
  • Motor depth: 40mm
