Description:
Build your own IoT Wireless Relay Project with the use of the 433Mhz RF Reciever!

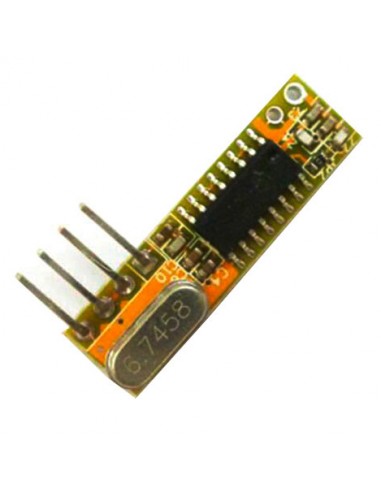

On board RF 433mhz Receiver SYN470.
On board Decoder EV1527 which is known for code learning.
On board status LED, when signals are received,learning and finished learning.
Up to four digital signal outputs, match up to four buttons on remote transmitter.
Pins are pre-soldered, an extra 4 optional pins can be soldered later (ANT, GND, LED, SW)
Specifications:
Sensitivity: -110dBm
Power: 3.3V-5.5V
Power consumption: 5.0V @ 315MHz, 2.5-2.8mA
Continuous data transfer rate to 2.4K (Manchester encoding)
Good local radiation suppression, which means there can be a number of receiver modules working together and will not interfere with each other.
Temperature range: -30-85.
28 x 12.5 x 5.00
